Cooling tunnel for chocolate moulds, 3 moulds per minute – 40 mould capacity – FBM CLIMA_10

FBM Clima_0010 – Vertical Cooling – for 40 x 275 x 175 Moulds – 3 moulds per minute – kW 4

Description

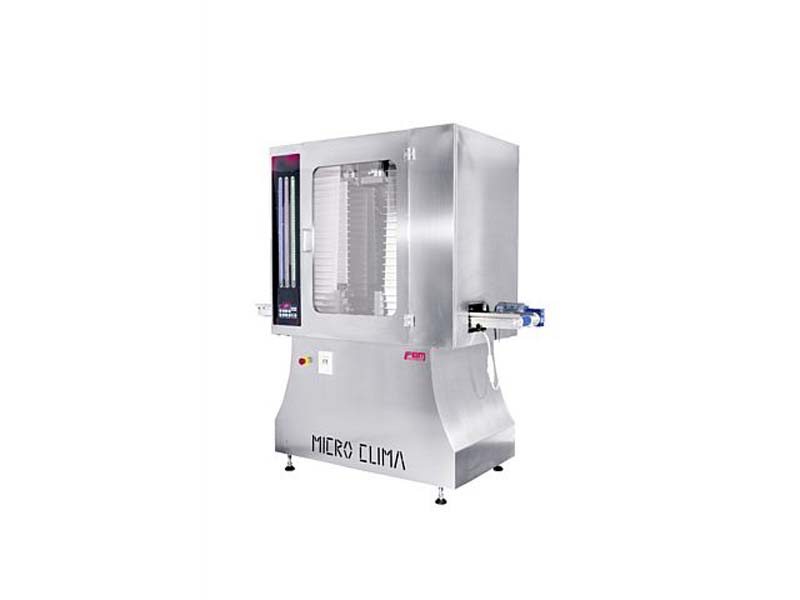

Micro Clima is the new micro tunnel, with vertical development, which allows to optimize the production of molded chocolate. Bars, masses, chocolate snacks, everything that is produced using polycarbonate molds can now also be cooled in a small space, without sacrificing productivity. The vertical movement system, with alternate towers, guarantees the complete finish and cooling of the products.

Vertical tunnel for molds 275mm x 175mm – Equipped with a pair of fans – 2 loading towers (20 molds each) – Loading molds through the long side – Pneumatic pistons for horizontal movement of molds – Timed mold presence sensors – Speed regulator of the transport system – Latest generation electronic board – Inspection windows – Electronically adjustable temperature (up to 5 ° C) – 3-color LED: green for electric activation; blue for cooling ignition; red for moving carpets and towers

• Production: from 3 molds per minute
• Installed power: 220/380V 3 phases 50/60 Hz
• Power consumption: 4 kW
• Entrance section: 300 mm
• Exit section: 300 mm
• Weight: 550Kg
