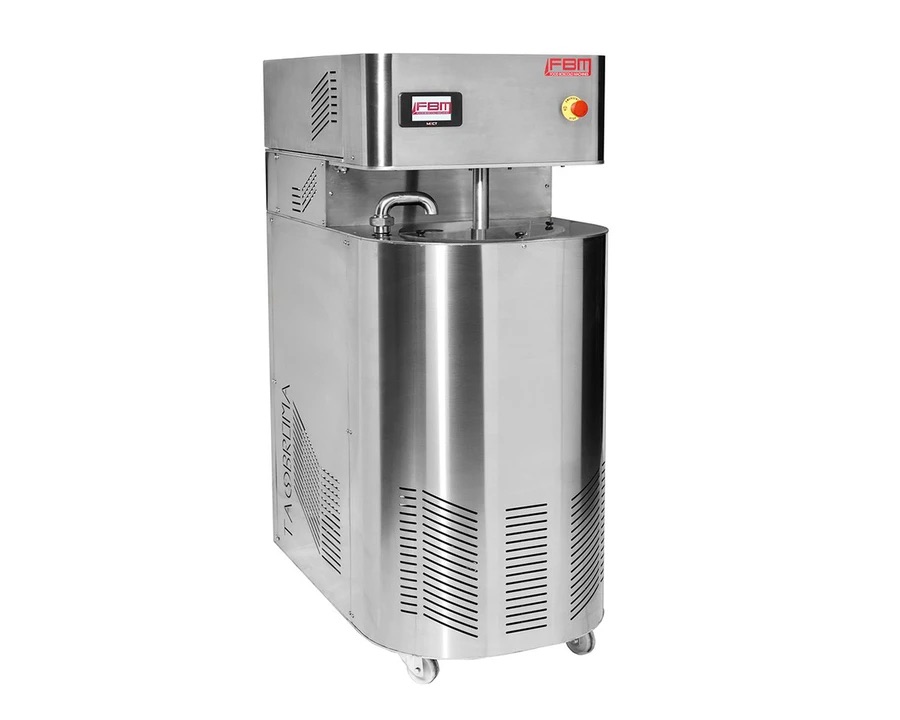

Chocolate ball mill, 35kg capacity – FBM TAOBROMA_100

FBM Taobroma_00100 – Ball Mill – 35kg capacity – Dimensions: mm 650 x 1025 x 1530 H – 380v – 3 phase

Description

Ball mills are capable of rapidly producing chocolate, nut pastes (for gianduja), and spreadable creams. It has been designed to reach 20/25 microns thinness.

The TaoBroma is equipped with an integral internal pump and reversible auger that ensure fast and homogeneous refining, avoiding unwanted clogging.

The TaoBroma is controlled by a compact touchscreen PLC that makes it easy to learn to use and operate as well as to create, store, and recall [up to NNN] recipes.

Control parameters include the speed of the internal stirrer, the speed of the pump, working temperature (separate heating and cooling circuits), and the overall refining time.

Technical Data

• Dimensions: mm 650 x 1025 x 1530 H
• Weight: 500Kg
• Capacity of production: 35Kg
• Power Consumption 4.5KW
