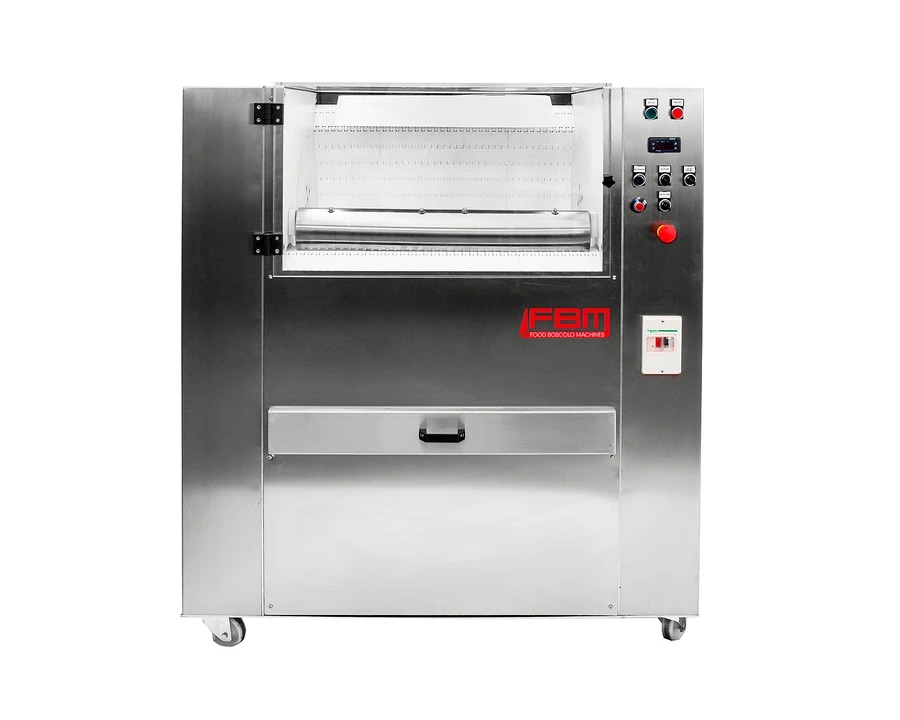

Chocolate panning machine belt – FBM PERLA_10

FBM Perla_0010 – Horizontal Panning M/C – 20-25kg per hour belt coater – 380v – 3 phase –
FBM’s PERLA horizontal belt coater does the same thing that conventional chocolate coating pans do – but quicker and quieter and requires less attention and training to operate.

PERLA makes it easy to coat (engross) nuts, dried fruit chunks, coffee beans, and many other items with any kind of chocolate. Thanks to its small size, it fits into any workshop and is made from stainless steel.

A forced air ventilation system is built into the housing and cold adjustable temperature. All aspects of the operation of the PERLA are accesible via an electronic control panel.

The belt reverses, which means the PERLA unloads itself within a matter of a few seconds at the end of each batch.

Technical Data

• Food-grade plastic belt (POM)
• Ambient and heated forced air standard; optional cooling unit
• Belt reverses for unloading finished product
• Integrated finished-product collection drawer
• Speed regulator for the belt Throughput: 40 kg Belt width: 800 mm
• Weight: 450 kg (~990 lbs)
• Installed power: 2.2 Kw
