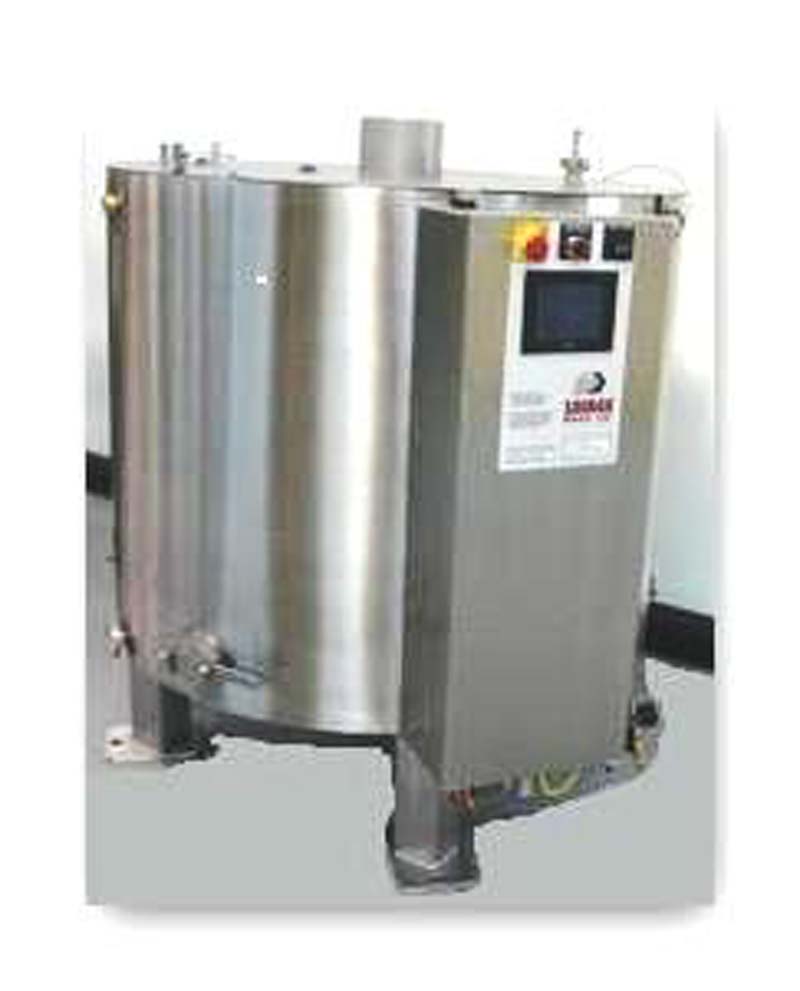

Chocolate Melting Tank – 900kg Capacity – SAV 0976-48

Designed for the large batch confectioner using chocolate compounds, icings, fondants, etc. Also suitable for industrial operations with similar melting ranges for products such as wax, soaps, cosmetics, etc.

PDFs

• 900kg Chocolate Melter & Conditioner

Features:

• All stainless steel water-jacketed construction
• UNIQUE water-jacketed draw-off guillotine valve for never plug performance
• Internal pump circulates water for fast melting and conditioning
• Lid-Off Agitator Stop safety feature
• Easy to use controls
• Precision digital temperature control
• Overnight 24 hour melting cycle
• Quick set-up
• Just plug it in, fill the jacket with water and add chocolate
• 415V/50Hz/3 Phase
• OPTIONAL casters for convenient mobility
• Easy clean-up
• Nylon agitator scrapers
• Designed for the large batch confectioner to feed warm chocolate into temperer, enrober or depositor
• Footprint 1213 x 1085 x 1305mm H
• Add a pump to transfer
• Add a Magazine Block Melter for automatic feeding of full chocolate bars and blocks

Specification:

Base Model Number		0976
Melted Capacity		900 kg
Standard Mounting		floor pad
Lid		hinged
Lid Interlock		included
Footprint		1406 x 1337mm
Height to Top Lip of Tank		1305mm
Tank Outside Diameter (OD)		1194mm
Height of Draw-Off Valve		370mm
Casters / Raise tank height		Optional Side mount
Standard Electric	Volts	415
(export models are made to	Cycles	50
country of use electrical	Phase	3
requirements)	Amps
System Controller Available
Melter/Conditioner	40 series	yes
