Automatic Chocolate Tempering Machine – 550kg Capacity – PLC Touchscreen Control – SAV 0974-68

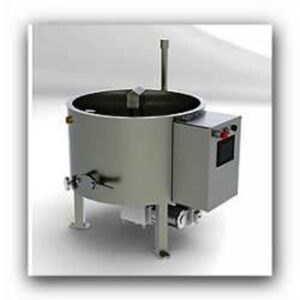

Savage Bros. 550kg capacity automatic chocolate tempering machine

Product code: SAV 0974-68

£ 47.523,00 excl VAT
(£ 57.027,60 incl VAT)

Designed for the large batch confectioner working with real cocoa butter chocolate requiring tempering.

PDFs

All stainless steel water-jacketed construction
UNIQUE water-jacketed draw-off guillotine valve for never plug performance
Internal pump circulates water for fast melting and conditioning
Lid-Off Agitator Stop safety feature
Easy to use
Load it with chocolate… push START … Automatically melts, cools & tempers chocolate
Typical use: load it at night… have fully-tempered chocolate when you begin work in the morning
Precision PLC Touch-Screen operator control technology
Visual control of Melt/Cool/Temper and Agitator On/Off cycles
Semi-Automatic Tempering requiring operator intervention at each cycle change available as special order model
Quick set-up
Just plug it in, hook up a water source & drain, and you are good to go
415V/50Hz/3 Phase
OPTIONAL casters for convenient mobility
Easy clean-up
Spring loaded Nylon agitator scrapers
Designed for the large batch confectioner to feed warm tempered chocolate into enrober or depositor
Footprint 1213 x 1085 x 1305mm H
Add a pump to transfer & integrate control into the PLC
Available as side-by-side systems for greater melting to tempering productivity

Base Model Number		0974
Melted Capacity		550 kg
Standard Mounting		floor pad
Lid		hinged
Lid Interlock		included
Footprint		1213 x 1085mm
Height to Top Lip of Tank		1305mm
Tank Outside Diameter (OD)		965mm
Height of Draw-Off Valve		360mm
Casters / Raise tank height		Optional Side mount
Standard Electric	Volts	220
(export models are made to	Cycles	60
country of use electrical	Phase	3
requirements)	Amps	28
System Controller Available
Melter/Conditioner	40 series	yes
PLC Full-Auto Temperer	60 series	yes

Machine Brand	Savage Bros
