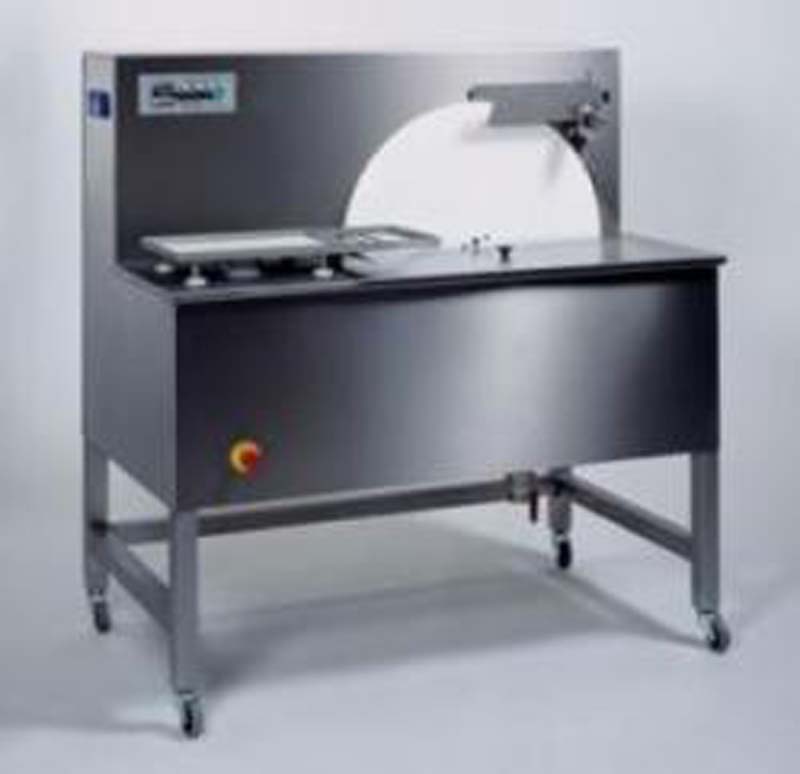

Chocolate tempering machine for large batches, 80kg capacity – MOU80II.B220

80 kg melting / tempering / moulding / wheel machines. The industry standard moulding machine that saves you time and effort. An enrobing belt and other options such as a truffle table can also be added to this model.

HIGHLIGHTS

:

• Especially for filling and vibrating chocolate moulds.
• Present-day technology.
• The result of years of experience in the area of chocolate processing.

CONSTRUCTION

:

• Stainless steel frame, dust cover, melting tank, mixing arm and vibration table.
• Hollow out in front side of frame (space for feet or bucket).
• Machine delivered on 4 castors.
• Equipment supplied with a 1 1/2 inch drain tap at the bottom.
• Food quality approved lifting wheel.
• Lifting wheel right-rotating for moulding activities and left-rotating for enrobing activities.
• Lifting Wheel and mixing arm easily removable for cleaning procedures.
• All controls on the outside are easily accessible.
• Omron thermostat with double display for requested and actual temperature. With extra mechanical security thermostat at the underside of the machine.
• Heating controlled by a highly accurate digital thermostat with PT100 sensor by means of a field-break switch.
• Siemens frequency control for speed regulation lifting Wheel. Operation speed regulation with potentiometer on operator bord.
• Heating tape with aluminium and isolation foam around the chocolate tank and the drain tap.
• Equipped with legally required emergency stop valve and restarter (reset).
• With 4 sockets for electricity supply from other modular machines and/or options.
• Electrical components of the inside of the machine are installed on a central panel.
• Lifting Wheel and mixing arm driven by three phase motor reductor 0,37kW.
• Entire equipment is protected by built-in motor protection in frequency control.
• Vibration table with separate vibration motor 35 Watt which vibration power is adjustable by means of adaptable imbalance plates.

DIMENSIONS:

L: 1350 mm, B: 820 mm, H: 1420 mm, Weight 188 Kg.
