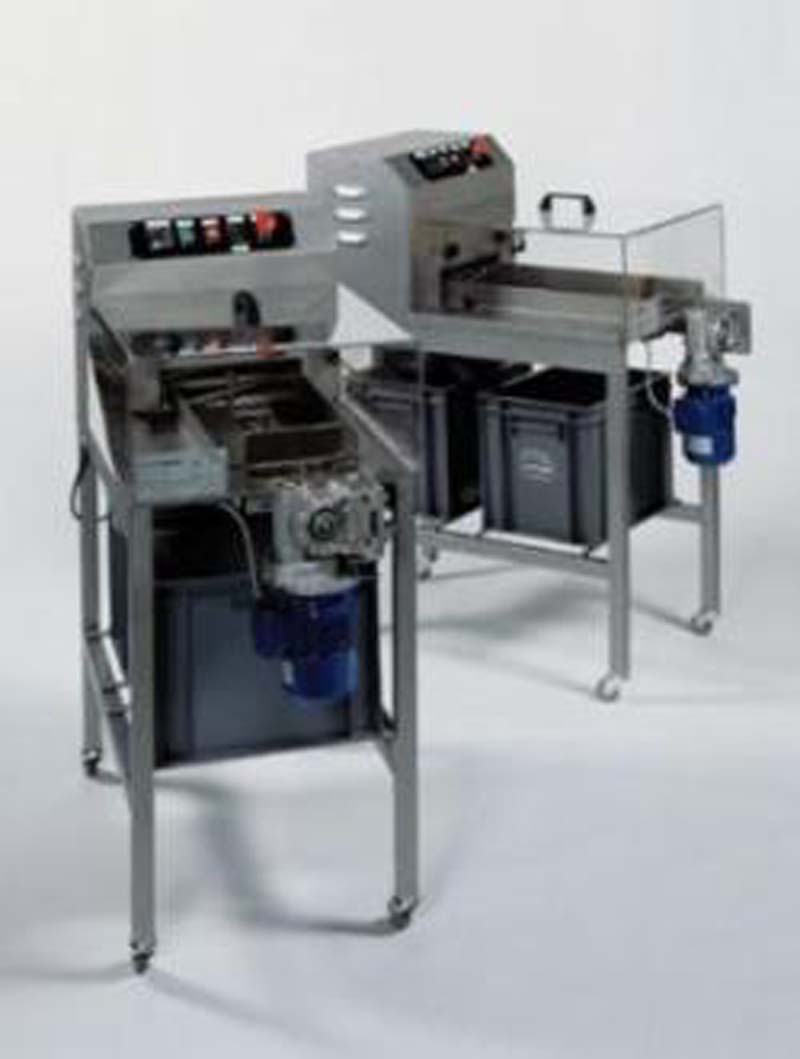

Prefamac – CURL220 – PFM-Flaking machine type Curl II

A new addition to the Prefamac range. This model makes various sizes of curled flakes (tubes) from blocks of chocolate and allows greater flexibility in flake size and thickness. Create the exact curl you want for decorative purposes!

Maximum chocolate block size: width 27 cm, length 47 cm, thickness 8,2cm.

PREHEATING OF THE CHOCOLATE BLOCKS IS REQUIRED!

HIGHLIGHTS:

• Processing time: 6 to 13 minutes for 10 kg of chocolate (for 2 blocks of 2,5kg or 5kg).
• Adjustable flake thickness.
• Easy cleaning procedures.
• All controls are easily accessible.

CONSTRUCTION:

• Stainless steel construction and frame.
• Cylinder with 6 knives.
• Optional different knives to produce flakes of various lengths (non-curling end result).
• The machine is equipped with a linear slide table (without lubricant). The block chocolate will not be in contact with any oily or greasy substances.
• Built-in safety mechanism to protect against injury caused by knife.
• Mounted on castors.
• Two drawers to collect flakes.
• Completely automatic operation and accelerated return.
• Separate motors with speed control for drive and knife.
• 220-240V 1ph 50Hz

OPTIONS:

• Different knives to produce flakes of various lengths (non-curling end result).
• Other dimensions of chocolate blocks.

DIMENSIONS:

• Height         880 mm
• Length        1460 mm
• Width         480 mm
• Weight       120 kg (Weight of knife: +/- 4kg).
